3 Axles 40 FT Flatbed Trailer
Loading capacity : 40 tons - 50 tons
Axles : 3 axles
Application: 2 sets of 20ft contaners or a 40ft container
3 Axles 40 FT Flatbed Trailer mainly transports 20ft or 40ft container. The most common loading capacity is 30 tons to 60 tons.
Recently, we made a batch of flatbed trailers for Congo Market. The following are about the photos and specifications of this 3 axles 40ft flatbed trailer.

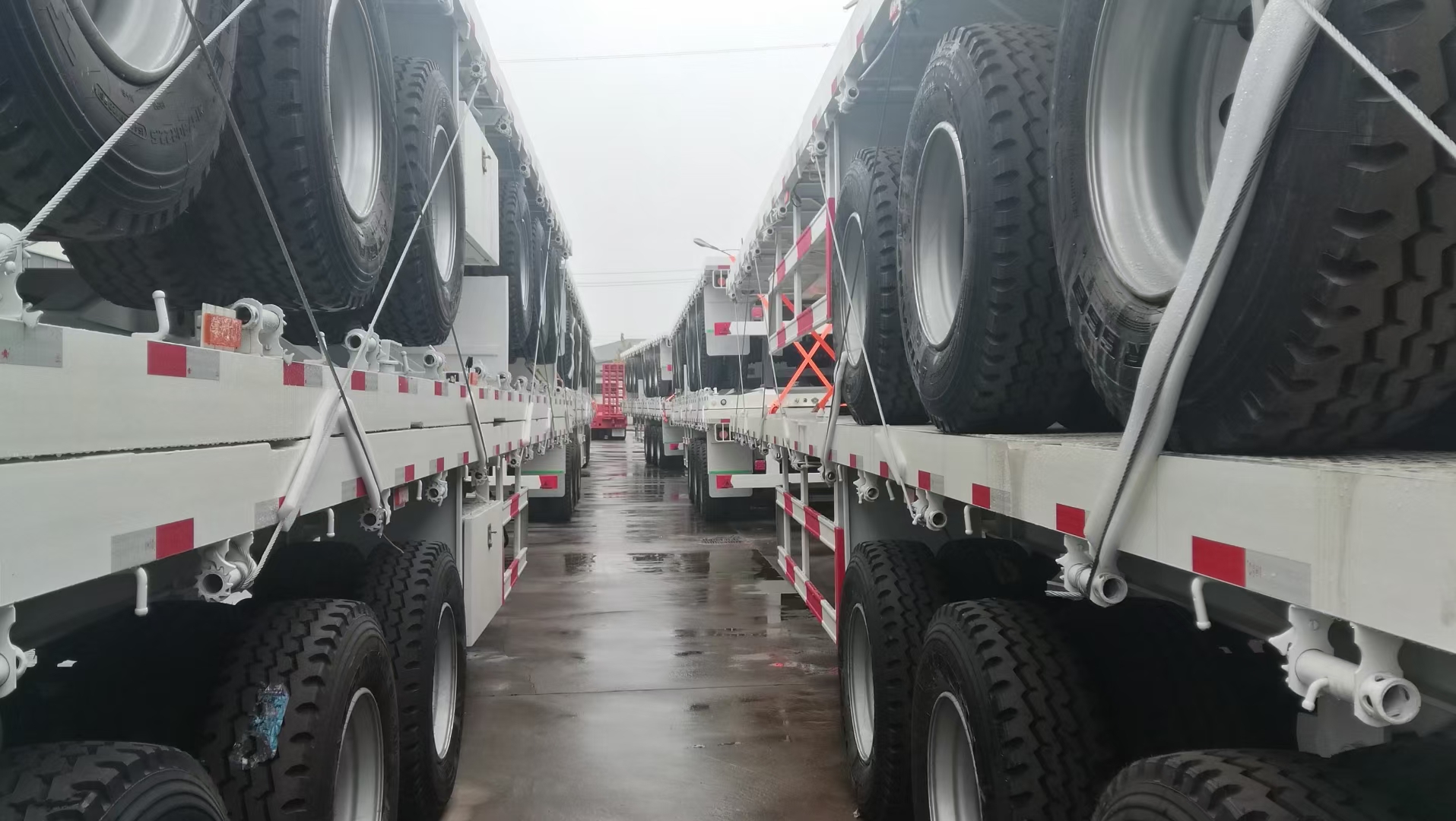

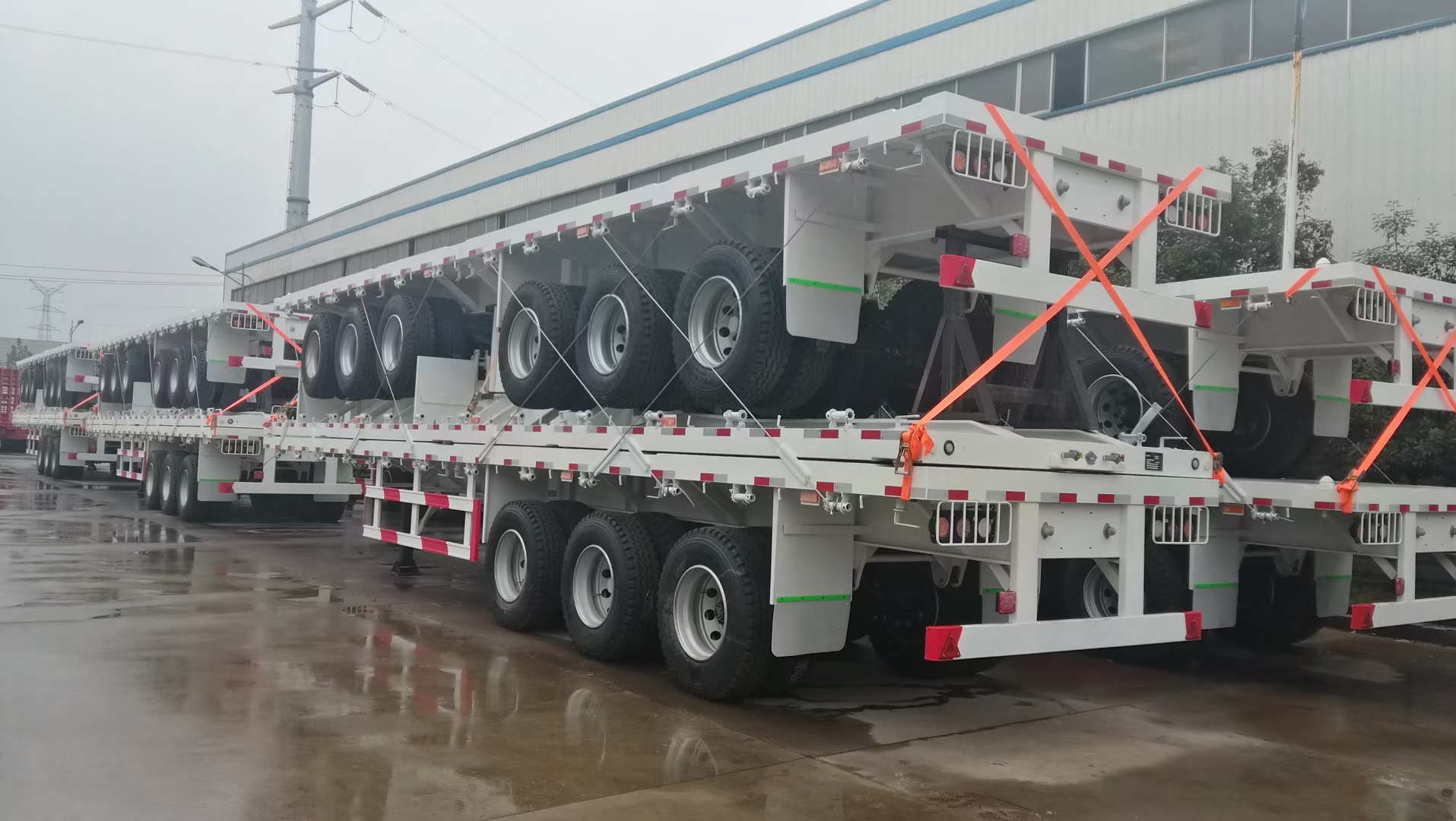

A batch of 3 axles 40 ft flatbed trailers waiting for delivery to Congo market.
Congo customer said: "white color is very perfect for the weather. "

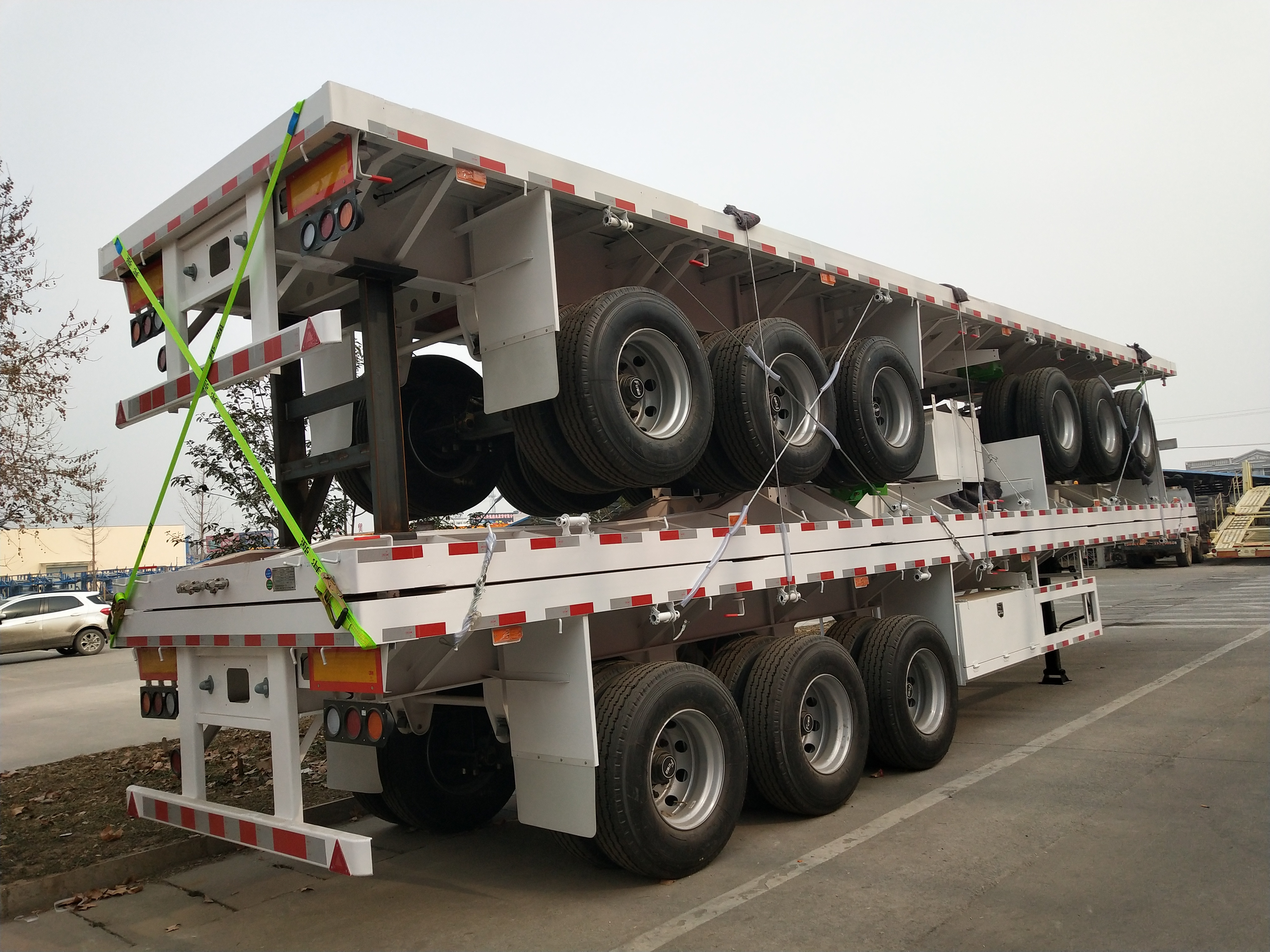

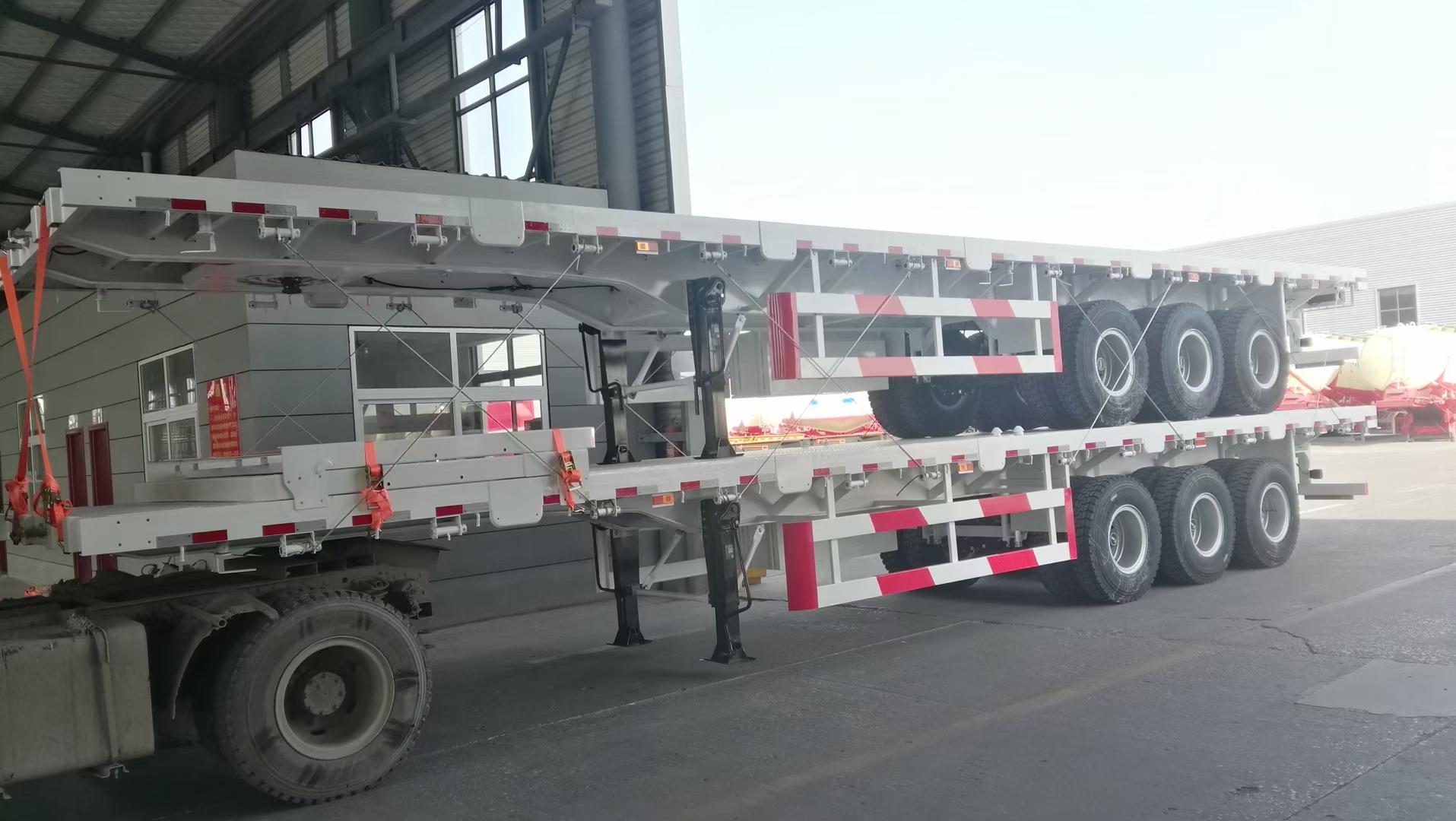

Professional packing to save more sea freight price.

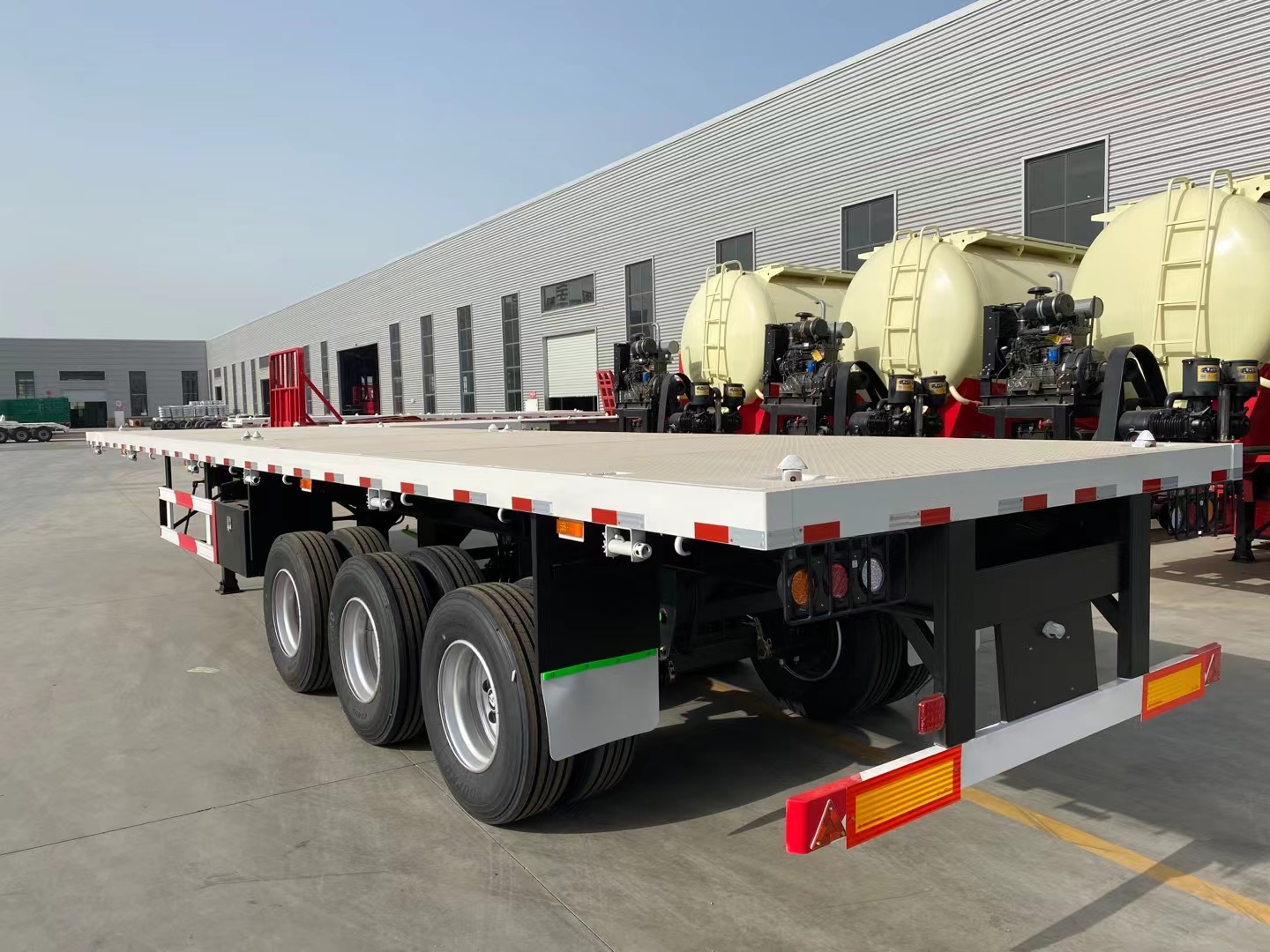

3 Axles 40 FT Flatbed Trailer
Its main specifications :
Dimensions: 12500mm * 2500mm * 1550mm.
Loading capacity: 40 tons - 50 tons.
Axles: 13 tons per axle, 3 axles, Fuwa brand.
Tires: 12 sets, 12R22.5, Triangle brand.
Suspension: heavy duty type mechanical suspension with 10 pcs, 13mm thickness, widen type.
Break system: WABCO valve.
Main beam: 500mm height, 14mm upper plate, 8mm middle plate, 16mm lower plate, Q345B steel materials.
Platform: 3 mm thickness.
Container locks: 12 sets.
King pin: Jost 2.0 or 3.5 inch, bolted type.

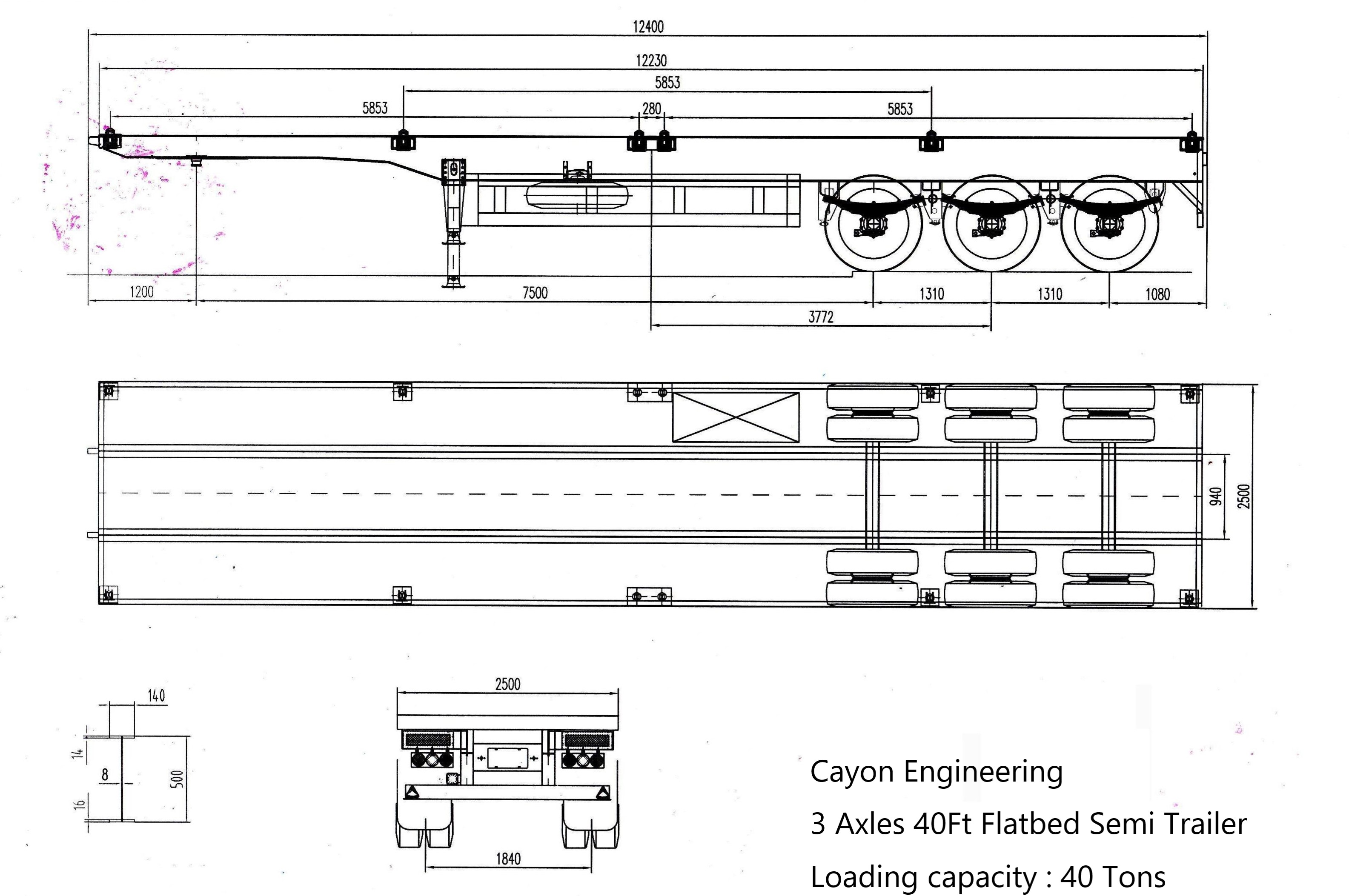

The drawing of 3 axles 40 ft flatbed trailer for your reference.
All specifications can be customized and welcome to contact us about more specifications.
